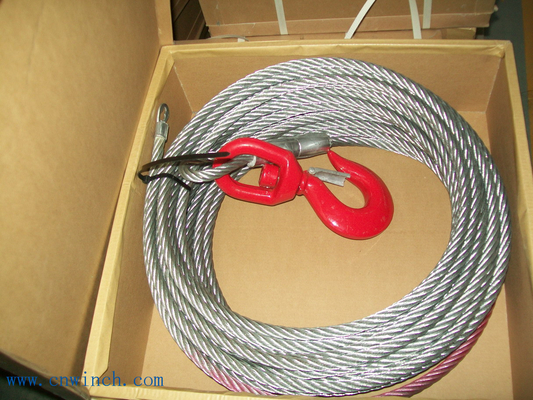

Capacity: | 20000lbs | Wire Rope: | Supplied Setarately In A Box |
---|---|---|---|
Approval: | CE | Insurance: | Product Liability Insurance Covered Worldwide |
Finish: | Powder Coating |
Powerful 20000 lb DC 12V/ 24V Electric Winch for trucks
We're proud to present this 20000lbs winch DC12V/24V to our dear customers, with heavy duty 500A solenoid, , pre built-in roller fairleads and a powerful motor, real steel gears, it's the best winch for trucks, emergency project vehicles or big jobs.

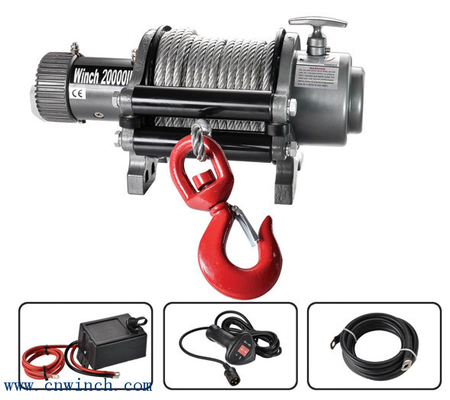

A.Truck Electric Winch 20000lb

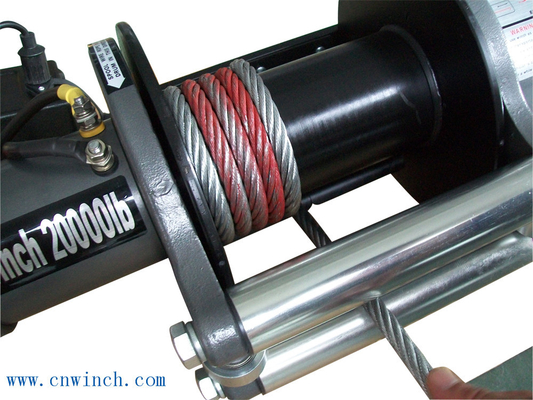

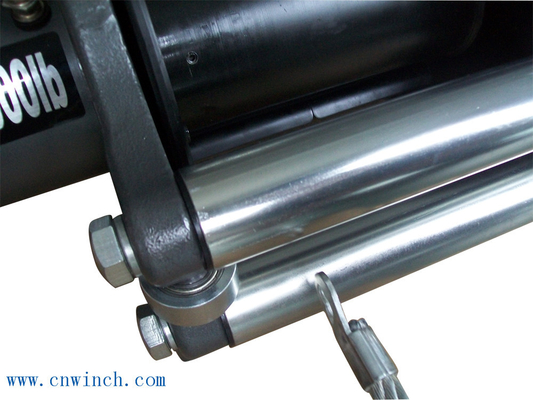

B.pre-built-in 4-way roller fairlead on the winch
C.Reliable
Single line rated pull | 20000LB (9072kg) |
Motor | 7.3hp/5.5kw(12V),6.38hp/4.8kw(24V), Series Wound |
Control | Remote switch, 12ft(3.7m)lead |
Gear train ratio | 375:1 |
Clutch | Slid ar |
Braking Action | Two-way, Automatic in-the drum |
Drum Size | Φ99mm×201.5mm |
Cable | Φ13.5mm×30m |
Remote Control | Wired remote control |

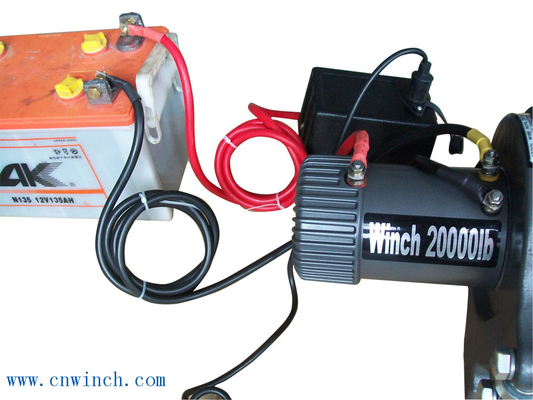

Battery | Recommended:650CCA minimum for winching |
Battery Leads | 2 gauge,72"(183mm) |
MAX Current (No load) | ≥75A (12V) ≥65A(24V) |
MAX Current (load) | ≥465A(12V) ≥410A(24V) |
Finish | Dark gray powder coat |
Weight | G.W:54kg (without cable), 85kg(with cable) N.W:52Kkg |
Cable Weighth | 33kg |
Overall Dimensions | 565×310×280MM |
Mounting hole |
254×114.3mm, 254×194.3mm M10×30 Outside Hexagon 8.8 grade 8 pieces |
20000LB LINE SPEED AND AMP DRAW (FIRST LAYER) 12V
Line Pull |
lbs
|
NO |
8000
|
10000
|
13000
|
16000 | 20000 |
kg
|
load | 3629 | 4536 | 5897 | 7258 | 9072 | |
Line Speed |
ft/min
|
19.8 | 11.6 | 9.7 | 8.58 | 6.6 | 3.96 |
m/min
|
6 | 3.5 | 2.95 | 2.6 | 2 | 1.2 | |
Motor |
Amps
|
75 | 190 | 260 | 310 | 380 | 465 |
Line Pull |
lbs
|
NO |
8000
|
10000
|
13000
|
16000 | 20000 |
kg
|
load | 3629 | 4536 | 5897 | 7258 | 9072 | |
Line Speed |
ft/min
|
19.8 | 11.6 | 9.7 | 8.58 | 6.6 | 3.96 |
m/min
|
6 | 3.5 | 2.95 | 2.6 | 2 | 1.2 | |
Motor |
Amps
|
65 | 170 | 230 | 290 | 360 | 410 |
Layers of cable | 1 | 2 | 3 | 4 | 5 | |
Rated line pull per layer | lbs | 20000 | 16000 | 13000 | 10000 | 8000 |
kg | 9072 | 7258 | 5897 | 4536 | 3629 | |
Cumulative cable capacity | ft | 16.5 | 37.3 | 61 | 89 | 99 |
m | 5 | 11.3 | 18.5 | 27 | 30 |
